Steel detailing and drafting services

A small senior team, backed by detailers we've worked with for years. From concept and design to the shop-ready fabrication package, to Australian Standards, by engineers who have worked on the tools.

Drafting & design

From a sketch on the back of an envelope to the shop-ready fabrication package.

Structural drafting & steel detailing

3D models and detailed drawings for beams, columns, bracing, stairs, walkways and platforms. We model first, resolve the connections, then produce the drawing set.

View scope, process and quote information

Shop & fabrication drawings

The complete shop-ready package: members and assemblies detailed, marked and listed, so the workshop has fewer questions back to the office.

View scope, process and quote information

Mechanical design

Equipment, conveyors, attachments, frames and access systems. Where a design needs validating, it goes through analysis before it reaches production.

  • Equipment & machinery design
  • Conveyors, chutes and hoppers
  • Attachments and custom frames
  • Design calculations and documentation

FEA — finite element analysis

Stress, load and deflection analysis on new or modified designs. The cheapest place to find a problem is on screen, before steel is cut.

  • Static stress & deflection analysis
  • Load case modelling
  • Design validation before fabrication
  • Reporting suitable for engineer review

Sheet metal drafting & flat patterns

Perforated panels, chutes, enclosures, cladding and custom sheet components. Developed flat patterns as DXF for the laser, with material, thickness and K-factor accounted for.

View scope, process and quote information

Stairs, ladders, walkways & access platforms (AS 1657)

Access steelwork detailed to AS 1657 — the Australian Standard for fixed platforms, walkways, stairways and ladders. We work to it regularly.

View scope, process and quote information

Balustrades & handrails for civil buildings

Balustrades, handrails and guarding for buildings and public spaces — connections, fixings and infill panels resolved on the model before anything is cut.

View scope, process and quote information

Structures for road and rail infrastructure

Gantries, supports, walkways, platforms and equipment structures for road and rail, detailed to the head contractor's drawing standards.

View scope, process and quote information

Product development & R&D

Taking an invention from concept through experimental runs to mass production. These are long programmes — typically six months to two years.

  • Concept development and feasibility
  • Design calculations and analysis
  • Prototype and experimental-run drawings
  • Revisions after testing
  • Production drawing set for volume manufacture

Drawings for approval

Send the scope through Aconex or any file link; we produce a set built to head-contractor expectations, raising RFIs where information is incomplete rather than guessing.

View scope, process and quote information

Overflow steel detailing

Additional detailing capacity for busy periods. You keep the client relationship while we prepare the agreed drawing package. Flat hourly rates apply, with weekend and holiday coverage available.

Discuss detailing capacity

Manufacturing

Manufacturing through our established overseas partner, with priority production capacity — from your approved drawings, or from drawings we produce. Won a contract with no production base? We supply drawings and manufacturing; you install.

Manufacturing through our partner

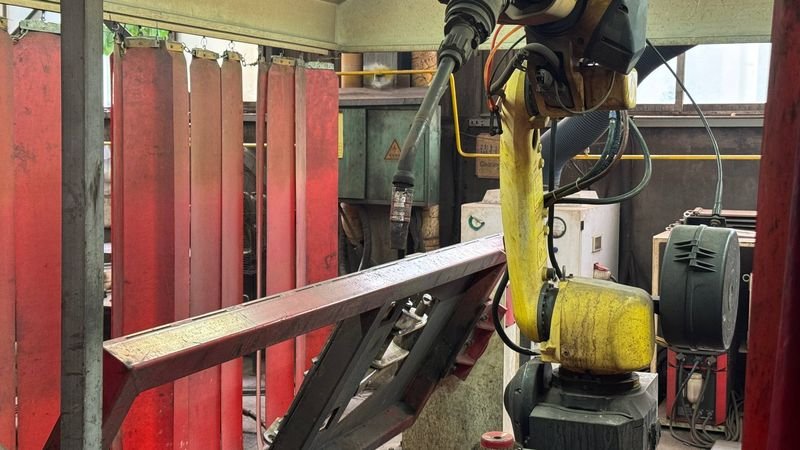

Manufacturing through our partner facility, from your approved drawings or from drawings we produce. Production is checked by the factory's QC department against our own QA checklist; every job is quoted individually.

Mill test reports (mechanical properties, chemical composition) are supplied. Independent Australian materials certification is arranged where a project requires it — generally public structures under crowd loads, generally not decorative work.

View scope, process and quote information

Free, no-obligation

Not sure which service you need?

Send the scope and we'll tell you what's actually required.

  • Free consultation with a senior engineer
  • Flat hourly rate — weekends and holidays included
Request a quote
